Variants

Three sensors. Pick the one that fits.

SpecificationUltrasonicToF (laser)Liquid Level (DLUS22)
Best forGeneral bins, glass, waterMixed waste, PMD, cardboard; 3D depth mapsOil, water and viscous fluids (UCO/FCO, tanks)
Range23–500 cm4–400 cm3–280 cm (3 cm blind zone)
Accuracy±5%±3% (field of view 27°, reducible to 15°)±5%
ProtectionIP67, IK10IP68, IK10IP67, IK10
DatasheetDatasheet (PDF)Datasheet (PDF)Datasheet (PDF)

Ultrasonic

Best for
General bins, glass, water
Range
23–500 cm
Accuracy
±5%
Protection
IP67, IK10
Datasheet (PDF)

ToF (laser)

Best for
Mixed waste, PMD, cardboard; 3D depth maps
Range
4–400 cm
Accuracy
±3% (field of view 27°, reducible to 15°)
Protection
IP68, IK10
Datasheet (PDF)

Liquid Level (DLUS22)

Best for
Oil, water and viscous fluids (UCO/FCO, tanks)
Range
3–280 cm (3 cm blind zone)
Accuracy
±5%
Protection
IP67, IK10
Datasheet (PDF)
Adjustable transducer: fits 90% of bins
Features

Built for the street

  • Fire alarm and temperature protection
  • Pickup and tamper reporting
  • Configurable fill-level thresholds
  • Reporting as % or raw distance
  • Firmware update over BLE
  • Adjustable mounting at 30°/60°/90° with screws or rivets
Installation

Installs in minutes

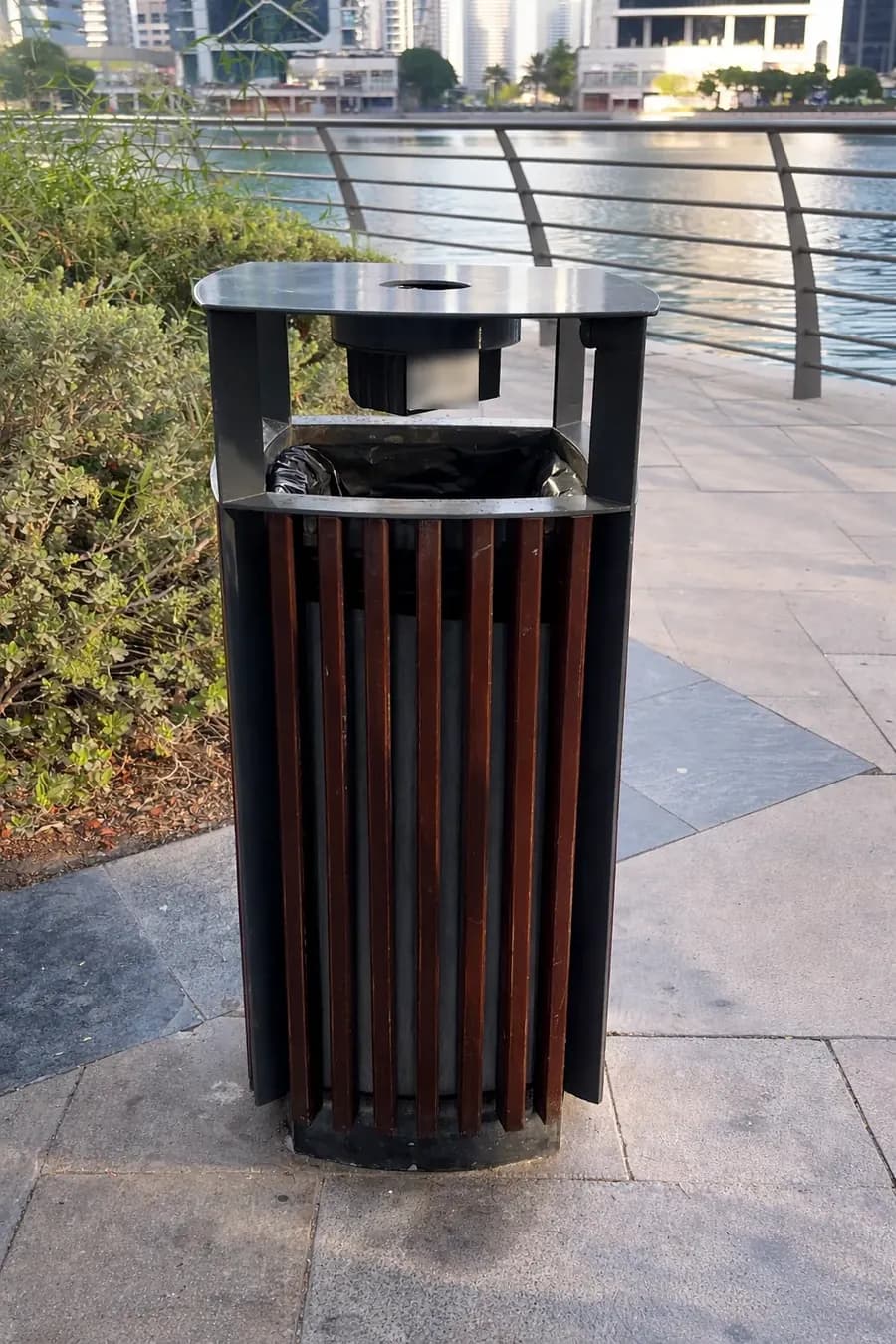

Street litter bin on a waterfront promenade fitted with a BrighterBins fill-level sensor under the lid
Street installation

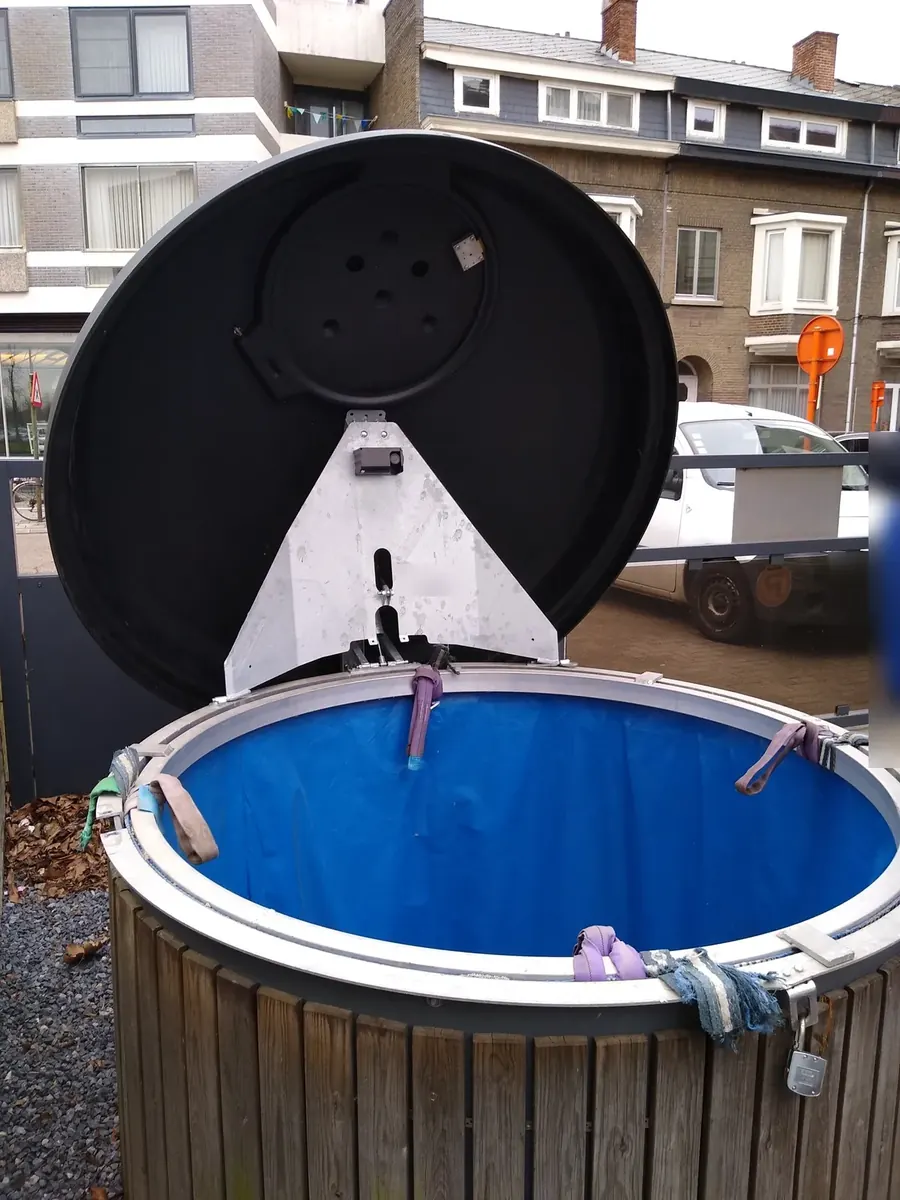

Open underground waste container with a BrighterBins sensor fitted under the lid
Underground container
Specifications

Every variant

Dimensions130 × 70 × 53 mm
Weight400 g
HousingABS
Battery14.5 Ah
Battery lifeMore than 5 years at 4 transmissions per day
Sleep current35 µA
Operating temperature−20 °C to +60 °C
ConnectivityLoRaWAN / NB-IoT / LTE-M (UDP/MQTT)
AntennaExternal antenna option for low-coverage areas
CertificationCE
Already live

Where BrighterBins works today

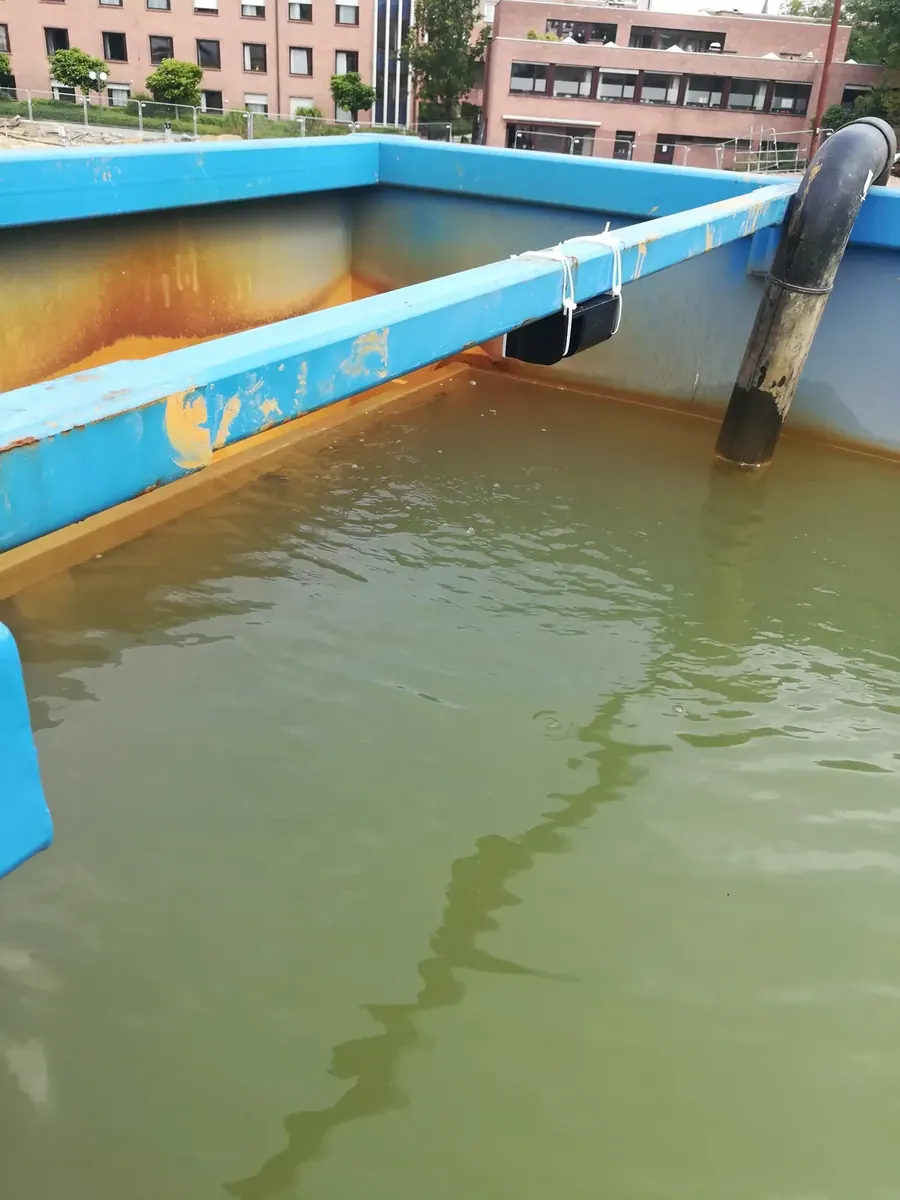

BrighterBins liquid-level sensor mounted on the rim of an open water container

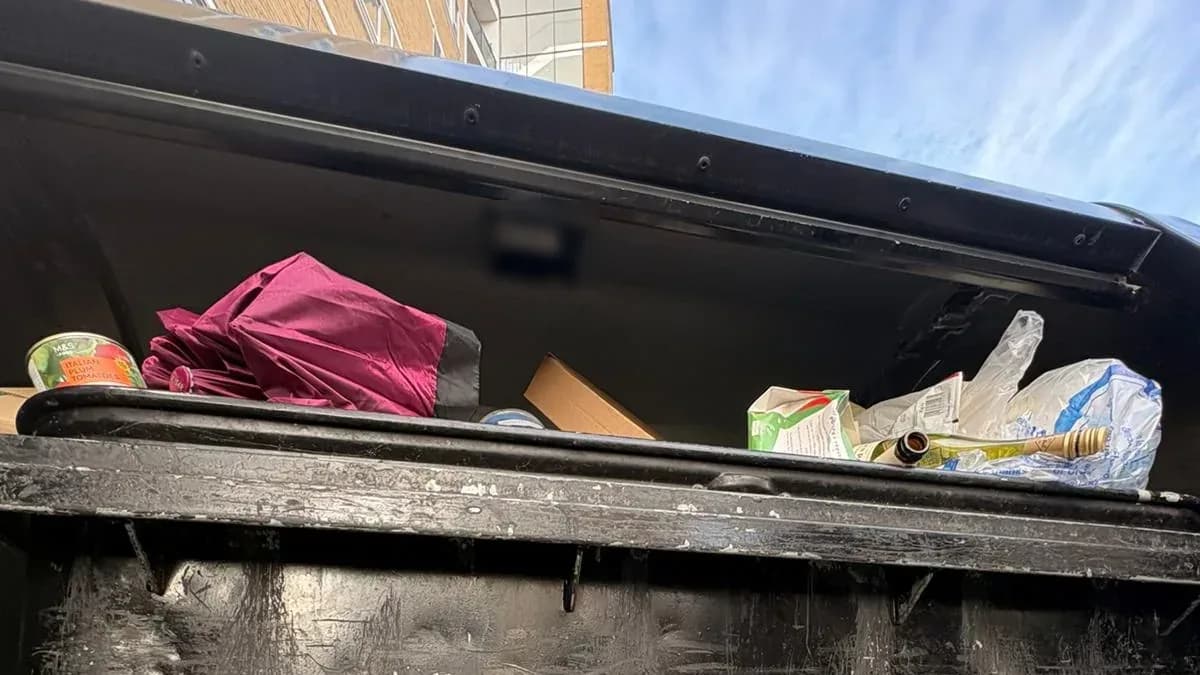

BrighterBins fill-level sensor mounted under the lid of a council recycling bin
Cooking oil: UCO collection & FCO auto-replenishmentSee how it works →Manholes, tanks & flood monitoringSee how it works →Municipal binsSee how it works →
Start with a pilot — 3 months for sensors, 3 to 6 months for AI cameras trained on your waste.

Live dashboard from day one.

25 to 100 sensors on your bins, live in SmartEnds OS with route optimisation. Three months to see the savings on your own routes.
