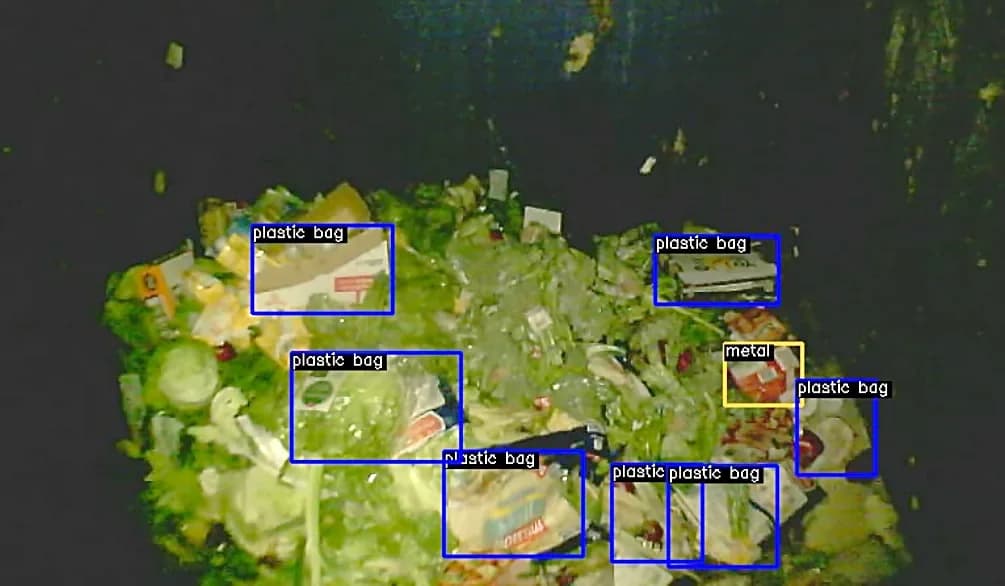

VisnLine in action: mounted on site, then the live camera view
Power
Battery, solar or mains
Primary battery
43,500 mAh. More than 5 years, depending on image resolution and uplinks per day.
Solar
25 W panel with internal and backup battery.
AC mains
Switches automatically to the backup battery if power is interrupted.
Specifications

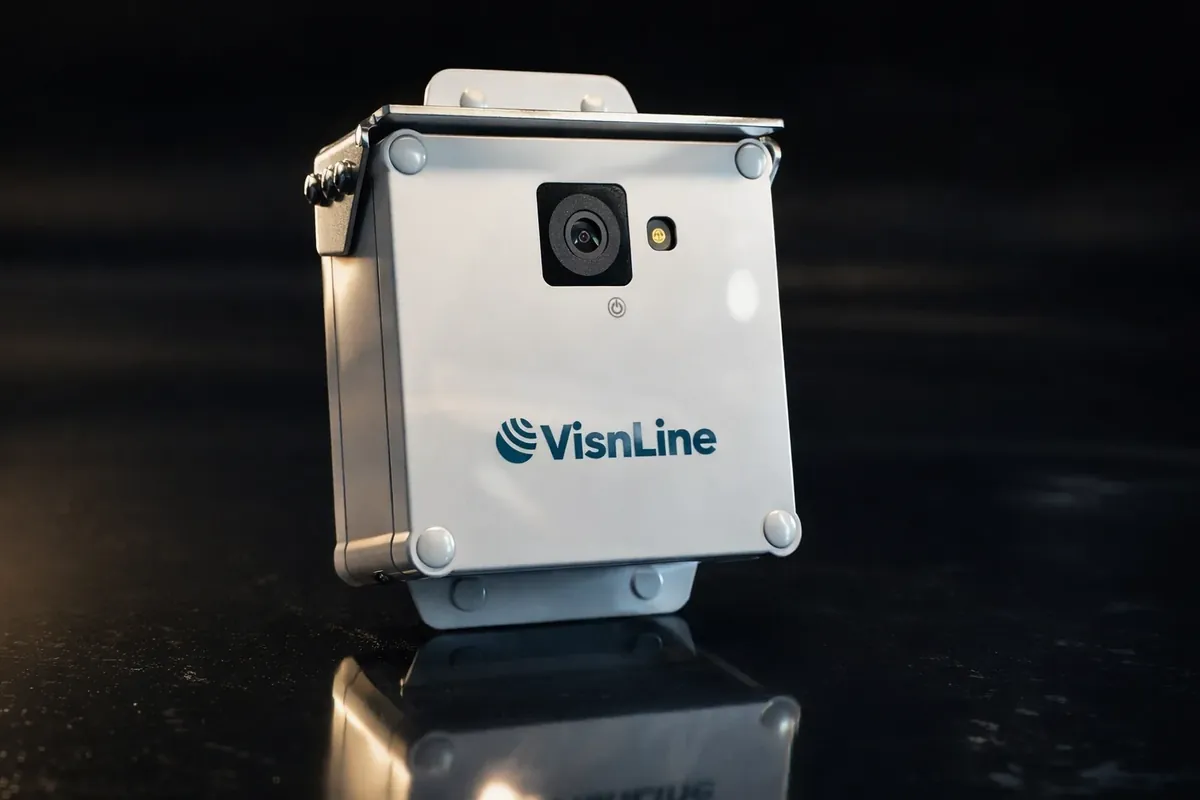

VisnLine at a glance

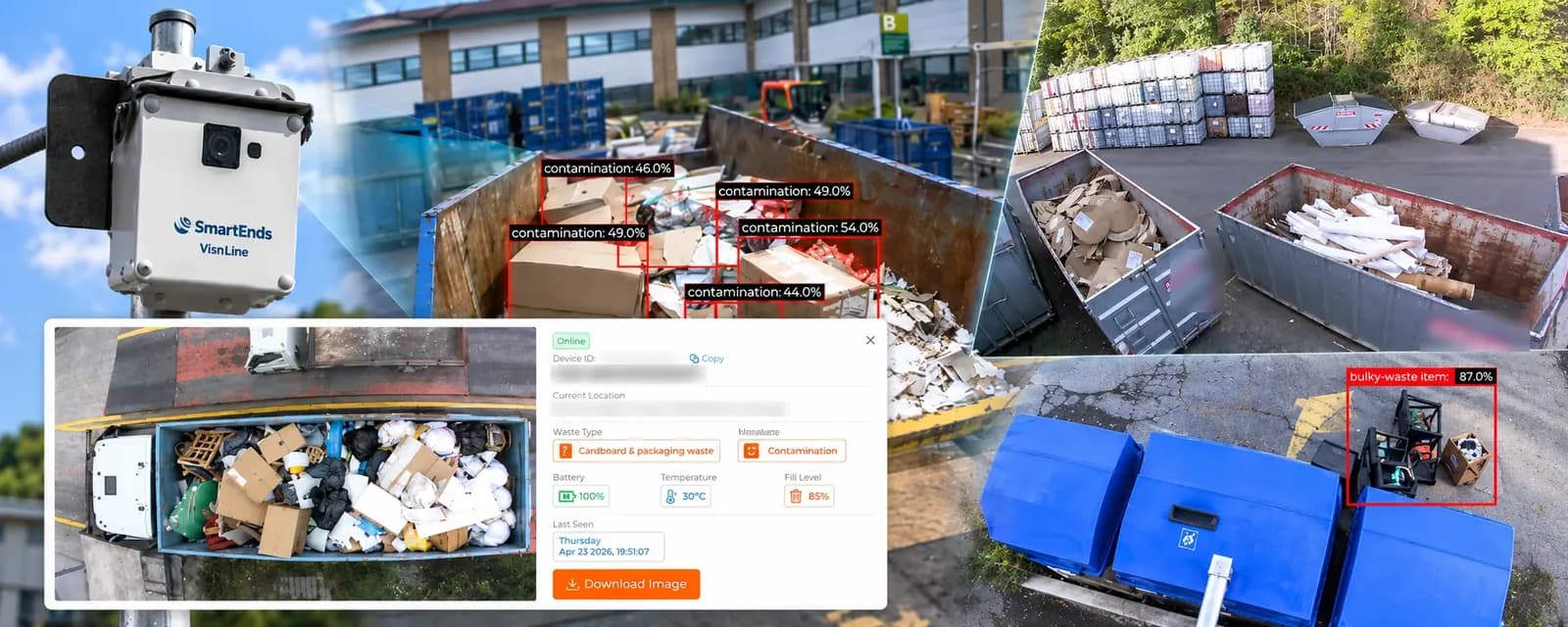

VisnLine AI camera installed in an underground container Solar panel and wire antenna for reliable power and coverage
Image sensor
5 MP CMOS (adjustable 0.5–5 MP)
Image format
JPEG
Lens
M12, F1.8
Field of view
130° diagonal / 110° horizontal / 78° vertical
Connectivity
LTE-M (Cat M1), Wi-Fi, BLE 5.3
Security
HTTPS
Firmware updates
OTA and on-site over BLE
Transmit interval
Configurable from 30 minutes to 24 hours
Sleep current
<25 µA
Operating temperature
−20 °C to +60 °C
Dimensions
168 × 120 × 61 mm
Protection
IP67
Compliance
RoHS
Data
REST API & webhooks, SmartEnds OS
The VisnLine datasheet is being updated. Ask us for the latest version when you book a demo.
Start with a pilot — 3 months for sensors, 3 to 6 months for AI cameras trained on your waste.
Live dashboard from day one.
We train VisnLine on your waste streams, your contamination rules and what you want to detect. Three months for standard use cases, six months for complex ones. Accuracy improves with every week of your data.
